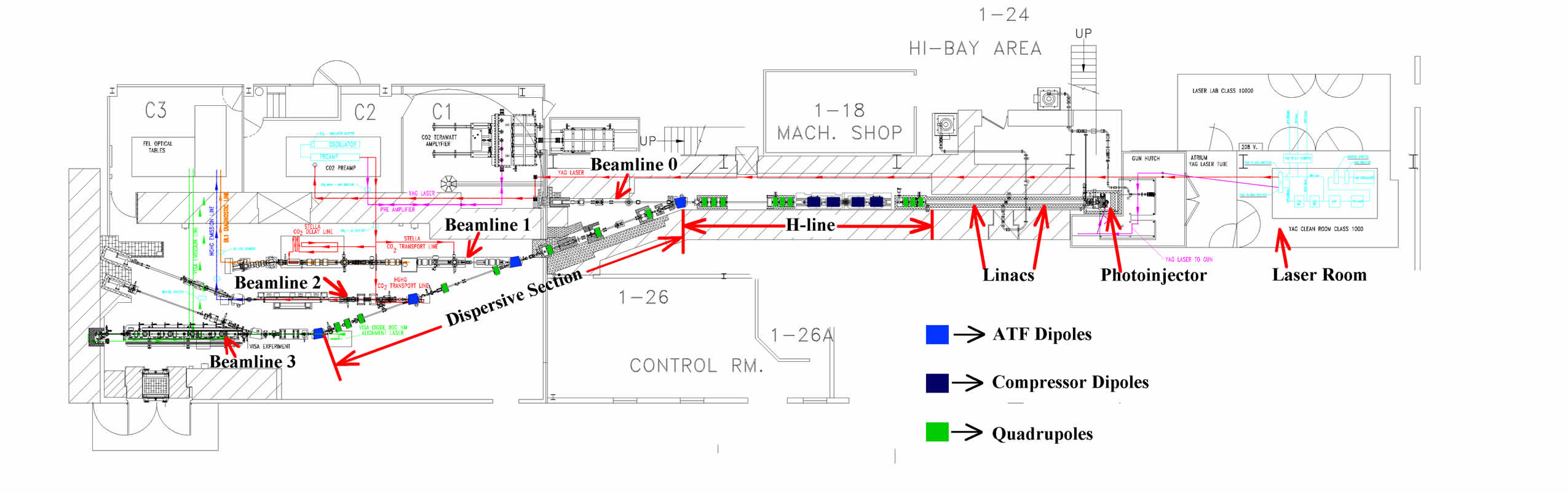

Layout of the ATF Experimental Facility

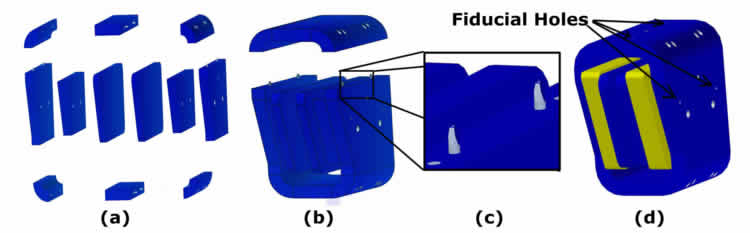

CAD Rendering of one of the ATF end magnets

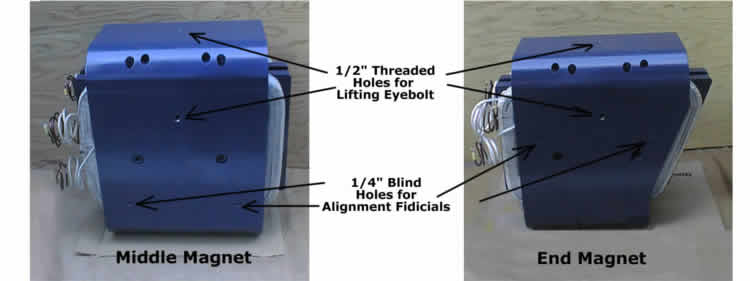

Pictures of actual dipole magnets

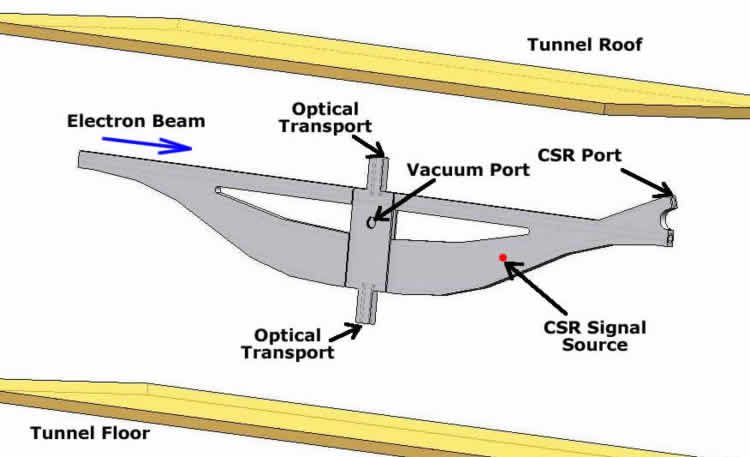

CAD Rendering of the compressor chamber

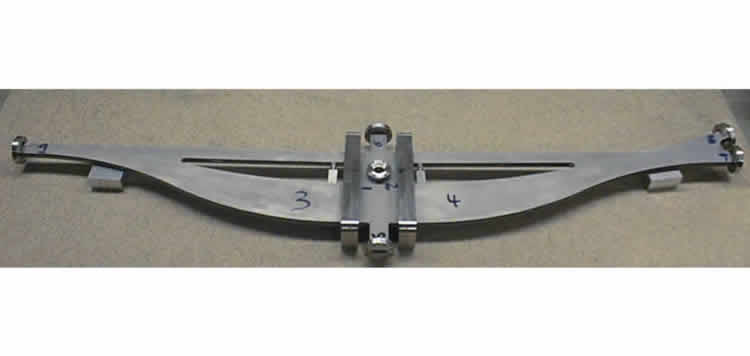

Picture of the completed vacuum chamber

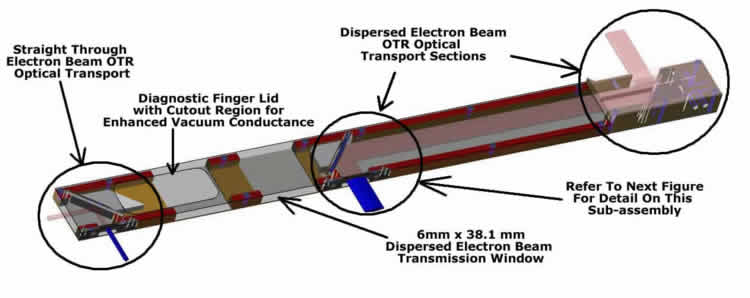

CAD Rendering of diagnostic finger

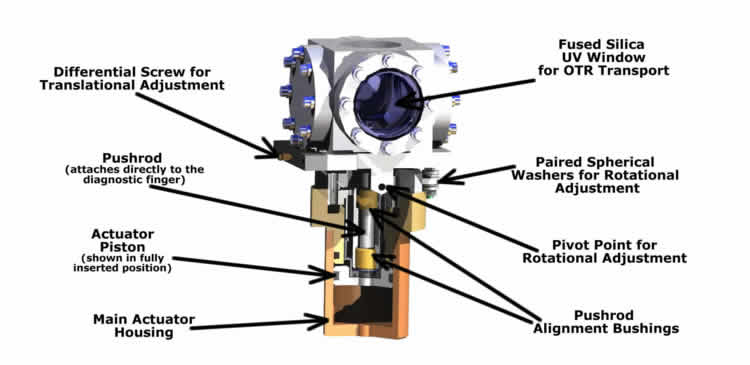

CAD Rendering of actuation assembly

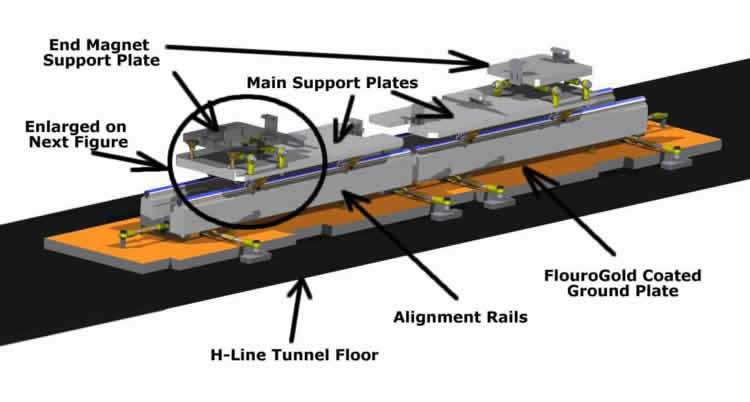

CAD Rendering of the alignment stand system designed by NSLS Mechanical Design Group
An advanced magnetic chicane bunch compressor has been installed at the ATF that will produce short and/or energy chirped bunches. The compressor itself is an experimental object, where the effects of coherent synchrotron radiation and non-inertial space-charge forces. In the context of this project, the compressed beam will be used in ATF beamline 3, to inject an ultra-short, high brightness electron beam into the VISA undulator, driving a SASE FEL into saturation in less than 3 m.
Future studies characterizing the CSR/CER emitted between the third and fourth magnets are on going.
![]() |

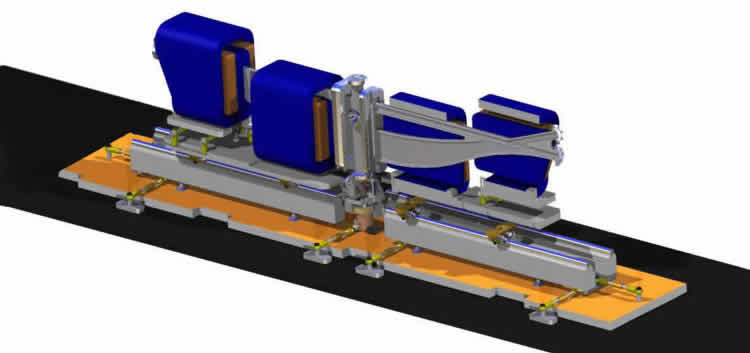

Rendering of the full ATF compressor system |

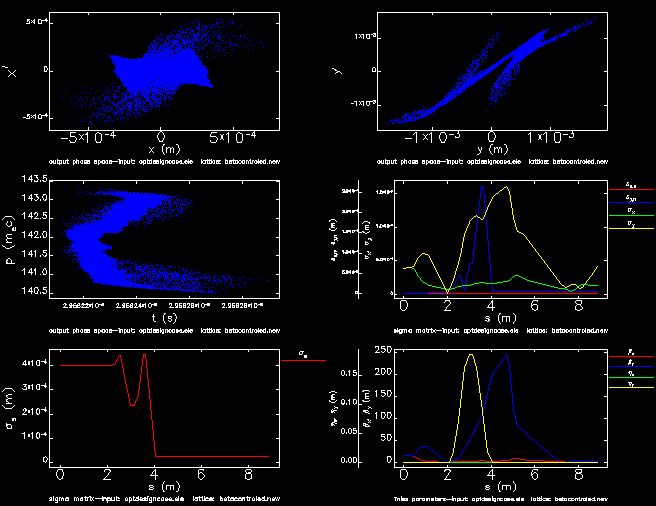

Phase spaces, emittances and twiss parameters of interest |
![]() |

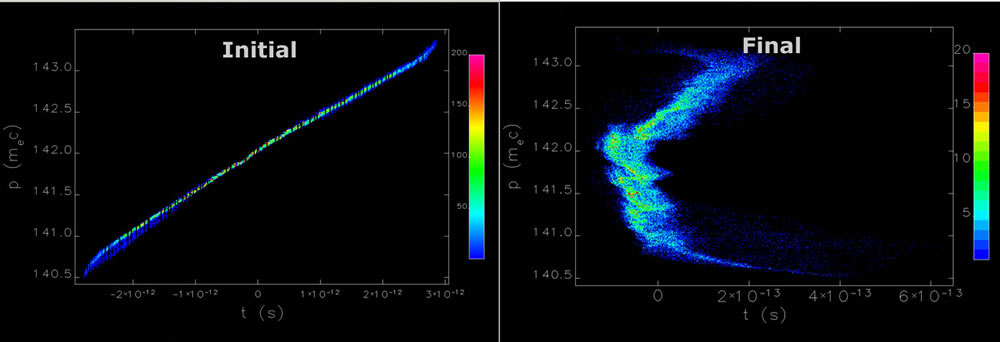

Longitudinal Phase Space |
![]() |

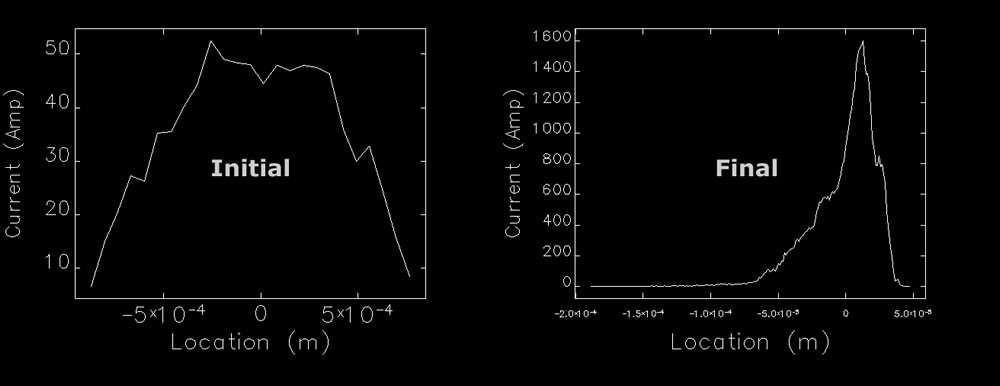

Current Profiles |
![]() |

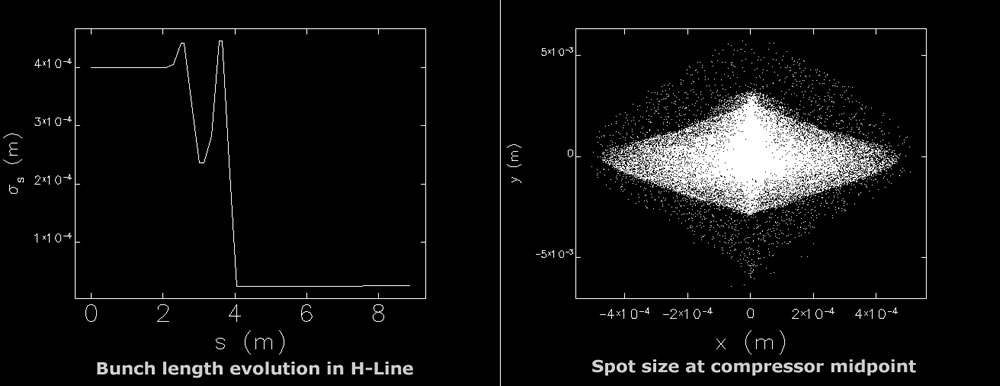

Bunch Length Evolution / Spot Size |
![]() |
***With the CSR turned on*** | |||||
property | Initial Beam | Final Beam | |||
current | 40-45 amps | 1.5Kamps | |||
emit, x | 1.45 mm-mrad | 1.49 mm-mrad | |||
emit, y | 1.47 mm-mrad | 5.755 mm-mrad | |||
X, rms | .39 mm | .14mm | |||
Y, rms | .39 mm | .14mm | |||
length, rms | 400 microns | 24 microns | |||
beta x | 15 m | 1.9 m | |||
beta y | 15 m | 1.9 m | |||
alpha x | -1 | 7.00E-12 | |||
alpha y | -1 | -0.77 | |||
***With the CSR turned off*** | |||||
property | Initial Beam | Final Beam | |||
current | 40-45 amps | 1.5Kamps | |||
emit, x | 1.45 mm-mrad | 1.49mm-mrad | |||
emit, y | 1.47 mm-mrad | 3.12mm-mrad | |||
X, rms | .39 mm | .14mm | |||
Y, rms | .39 mm | .188mm | |||
length, rms | 400 microns | 257 microns | |||
beta x | 15 m | 1.9 m | |||
beta y | 15 m | 1.9 m | |||
alpha x | -1 | 7.00E-12 | |||
alpha y | -1 | -0.77 | |||
The above parameters and the attached plots are all either taken from the beginning | |||||
of the H-line or at the entrance to the dogleg. The one exception is the spotsize | |||||
plot which is shown at the symmetry point of the compressor. |
